Self weight: 1.3 T
Dimensions: 2.5 * 0.6 * 1.5 m
Max operating radius: 6 m

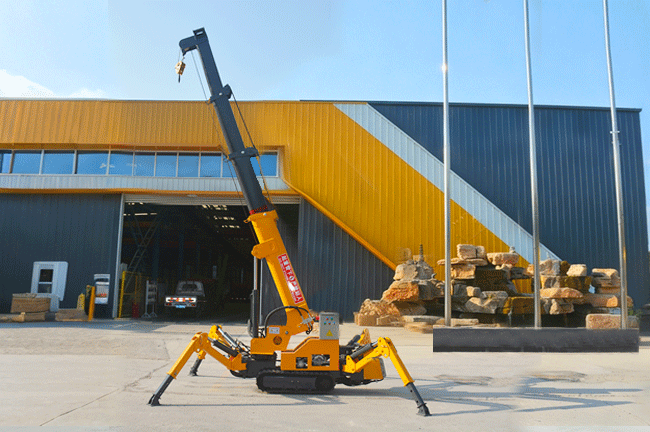

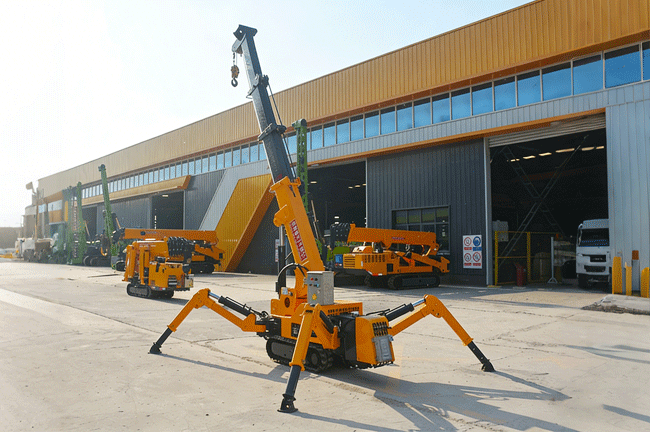

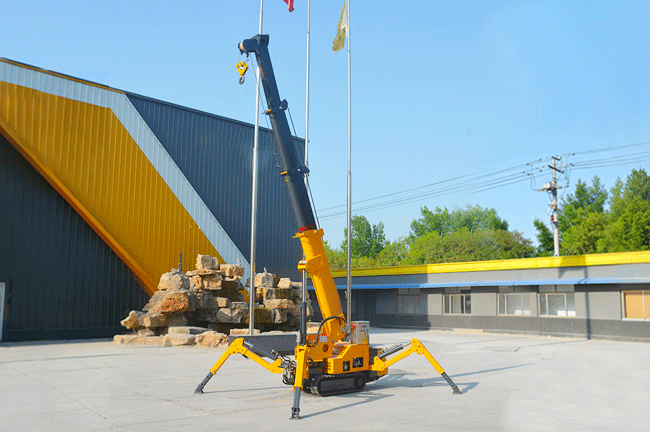

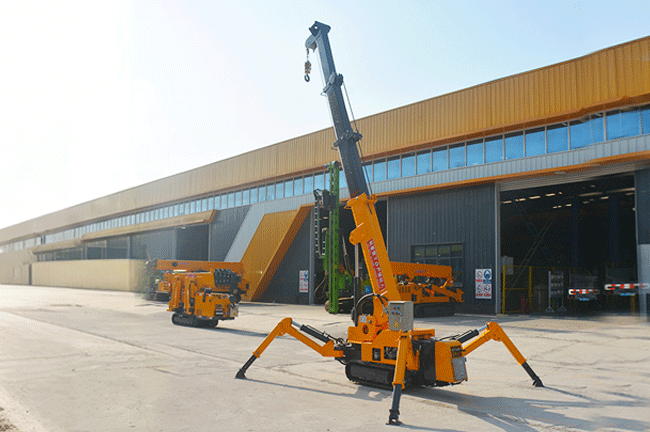

MKDZ-1.5T Spider Crane
Overview
The MKDZ-1.5T Spider Crane is a compact lifting solution engineered for narrow spaces, indoor operations and complex job sites. It delivers a rated lifting capacity of 1.5 tons and a maximum vertical lifting height of 6.5m. With a body width of only 600mm, it passes through standard doorways and narrow alleys with ease. Equipped with a 4-section fast telescopic boom and adjustable outriggers, it balances flexible mobility and operational stability. Certified by CE and ISO 9001, it is widely used in curtain wall installation, equipment maintenance, workshop operation, landscape construction and other lifting scenarios.
Specifications
| Model | MKDZ-1.5T |
Rated Lifting Capacity | 1.5 t |
Max Vertical Lifting Height | 6.5 m |
Max Safe Operating Radius | 6 m |
Climbing Capacity (Gradeability) | 25°(36%) |
Boom Configuration | 4 Section Telescopic Boom | Full Extension in 20s | 0°-78° Angle Adjustment in 13s |
Overall Transport Dimensions (L×W×H) | 2500 × 600 × 1500 mm |
Operating Weight | 1.3 t |
Outrigger Span | 2000 × 2000 mm |
Key Features
1. Ultra-Narrow Body Fits Standard Doorways
With a transport width of only 600mm, the compact body fits smoothly through standard indoor doorways, passenger elevators and narrow passages. It can enter confined spaces such as indoor rooms and atriums without building modifications, solving the pain point that conventional cranes cannot access.
2. Efficient Quick Deployment to Shorten Work Cycles
Boom telescoping, angle adjustment and outrigger deployment are completed quickly without complex setup. The machine enters operation shortly after arriving on site, greatly cutting project preparation time and improving overall construction efficiency.3. Universal for Indoor and Outdoor Scenarios
The low-ground-pressure design fits delicate indoor floors, while the crawler chassis handles rough outdoor terrain. It works for both indoor tasks like workshop equipment maintenance and mall interior installation, and outdoor jobs like curtain wall construction and landscape building.
4.Multiple Safety Designs with Controllable Risks
Supported by wide outrigger structure, standardized load moment control and international safety certifications, it ensures operation safety throughout structural design, performance control and production standards, effectively reducing equipment failure and accident risks.
5. 25° Gradeability with All-Terrain Crawler Travel
Equipped with a rubber crawler chassis, it has a gradeability of 25° (36% slope). It drives smoothly on slopes, muddy roads and uneven ground, adapting to complex terrains such as outdoor construction sites and hilly landscapes.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDZ-1.5T Spider Crane , please contact us.
