MKD-07 Mini excavator

Factory Direct

Training on Arrival

One-year warranty

Rated power: KP192/7.6kW

Work pressure: 18Mpa

Bucket capacity: 0.012m³

Request a Quote WhatsApp

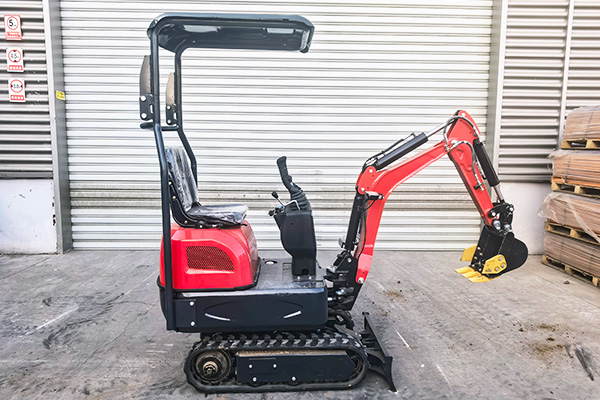

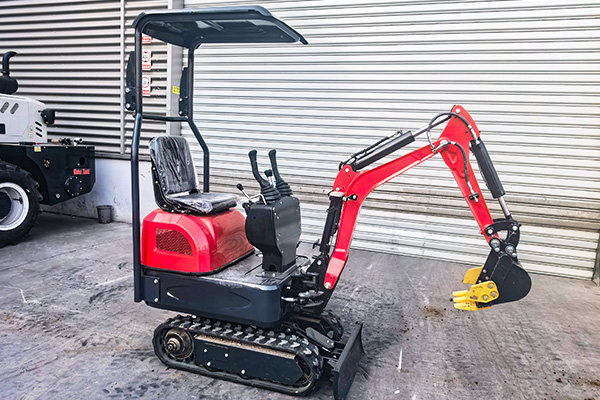

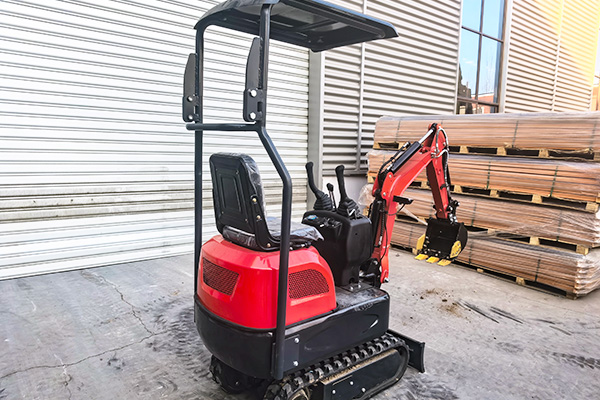

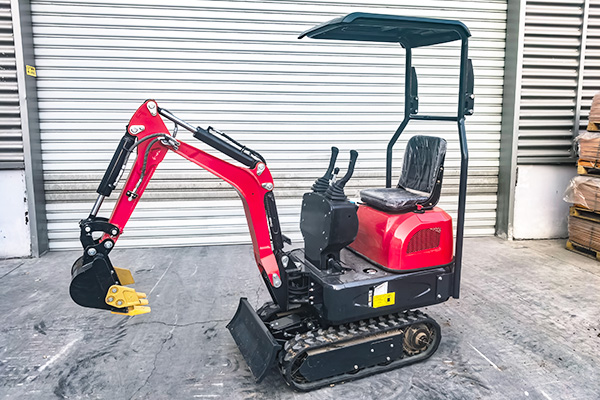

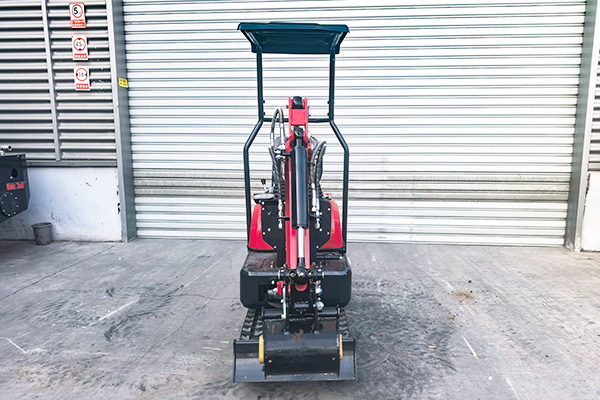

Product Pictures

Product Introduction

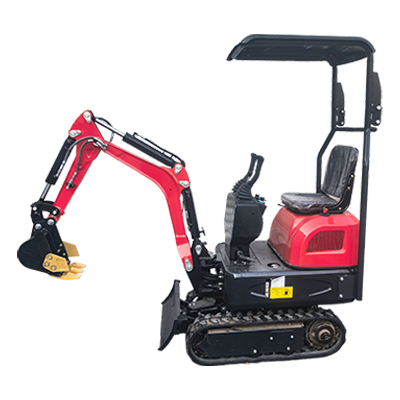

MKD-07 Mini Excavator

Overview

The MKD-07 ultra-light mini excavator is designed for operations in confined spaces, residential renovations, landscaping, and agricultural projects, combining a compact body, precise hydraulic control, and a high-efficiency power system. Featuring a zero-tail-swing design and a tracked undercarriage, it overcomes the operational limitations of traditional small excavators, delivering outstanding performance in settings such as narrowcourtyards, indoor sites, orchards, and older residential area renovations. It offers exceptional maneuverability, low fuel consumption, and versatility across various environments. As an ideal alternative to manual labor, it not only adapts to complex terrains but also significantly boosts operational efficiency and reduces overall project costs.

Specifications

Model	MKD-07
Rated power	KP192/7.6Kw
Fuel tank capacity	5
Standard bucket width	300
Bucket capacity	0.012
Maximum excavation force	8KN
Multi-way valve brand	Bei Fang
Hydraulic pump (brand, gear plunger)	SHIMADZU
Hydraulic flow rate	18L/min
Work pressure	18Mpa
Rotating motor brand	LIVEWO
Rotation speed	8
Walking motor brand	LIVEWO
Walking speed	1.6
Climbing angle	30°
Ground pressure	28Kpa
Maximum excavation depth	1200
Maximum excavation distance	2330
Maximum vertical arm digging depth	1200
Maximum excavation height	2100
Maximum unloading height	1350
Minimum turning radius	1200

Key Features

1.High-precision manufacturing for outstanding volumetric efficiency and stable pressure output

Adopting ultra-precision gear and side plate processing technology, internal oil leakage is minimized significantly. The pump maintains stable flow and pressure even under rated pressure up to 206 bar and peak pressure of 245 bar, avoiding power attenuation during frequent compound actions. It guarantees consistent driving force for hydraulic actuators and greatly improves the operating smoothness of engineering equipment.

2.Superior structural durability with long service life under heavy-duty cyclic operation

Equipped with high-strength wear-resistant bearings and anti-fatigue alloy shell, the pump successfully passes over one million high-pressure impact fatigue tests. Optimized anti-wear friction structure effectively prevents gear scuffing and component ablation, delivering stable performance in dusty, muddy and high-temperature harsh construction environments and extending component replacement cycles.

3.Low-noise optimized design for energy-saving and comfortable operation

Adopting asymmetric silent tooth profile and internal flow channel noise reduction structure, operating noise is reduced by nearly 30% compared with conventional gear pumps. Lower flow loss cuts heat generation and energy consumption, helping host equipment achieve lower hourly fuel consumption, complying with global environmental emission standards and meeting the low-noise operation demands of urban and indoor construction sites.

4.Strong anti-contamination performance to adapt to complex on-site working conditions

Featuring exclusive side plate sealing and gap compensation mechanism, the pump boasts excellent dirt tolerance and anti-jamming capability. It can work stably under medium oil cleanliness, effectively avoiding gear locking, pressure drop and pump burnout caused by hydraulic oil impurities, greatly reducing unexpected downtime and maintenance expenses on construction sites.

5.Compact lightweight structure with diversified specifications for wide-range matching

Made of high-strength aluminum alloy housing, the pump features small installation space and light weight, convenient for host layout and assembly. Multiple displacement, single pump and double pump options are available, perfectly matching mini excavators, drilling rigs, forklifts, agricultural machinery and special engineering vehicles, supporting customized OEM installation requirements for global equipment manufacturers.

6.Global verified mature technology and complete after-sales spare parts support

With over half a century of hydraulic R&D and manufacturing experience, Shimadzu pumps occupy a leading market share in construction and logistics machinery industries. Standardized serial products realize universal spare parts supply, with global localized after-sales service networks ensuring fast component replacement and technical support for overseas engineering projects.

Get a quote

For inquiries regarding the price, specifications, or configuration details of the MKD-07 Mini excavator, please contact us.

Company Introduction

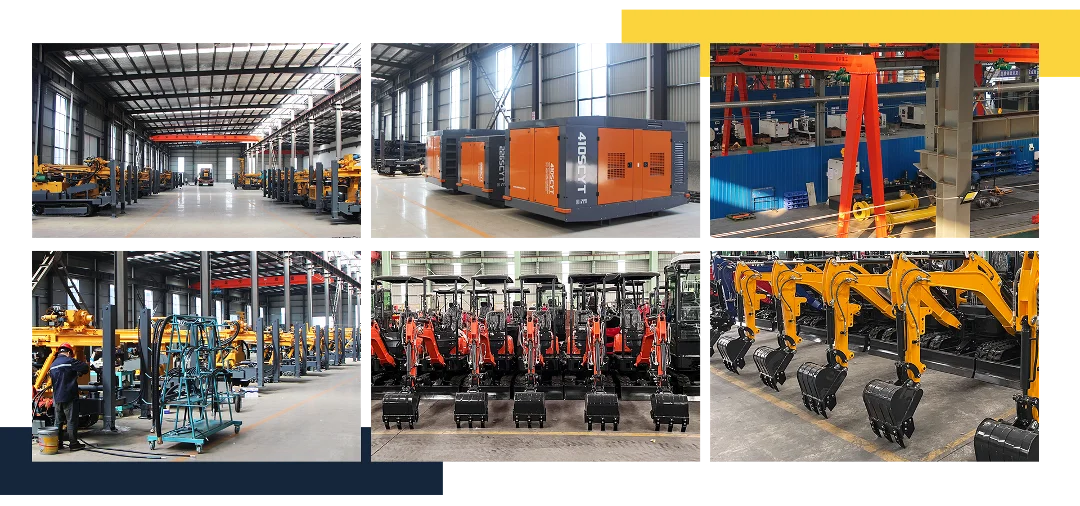

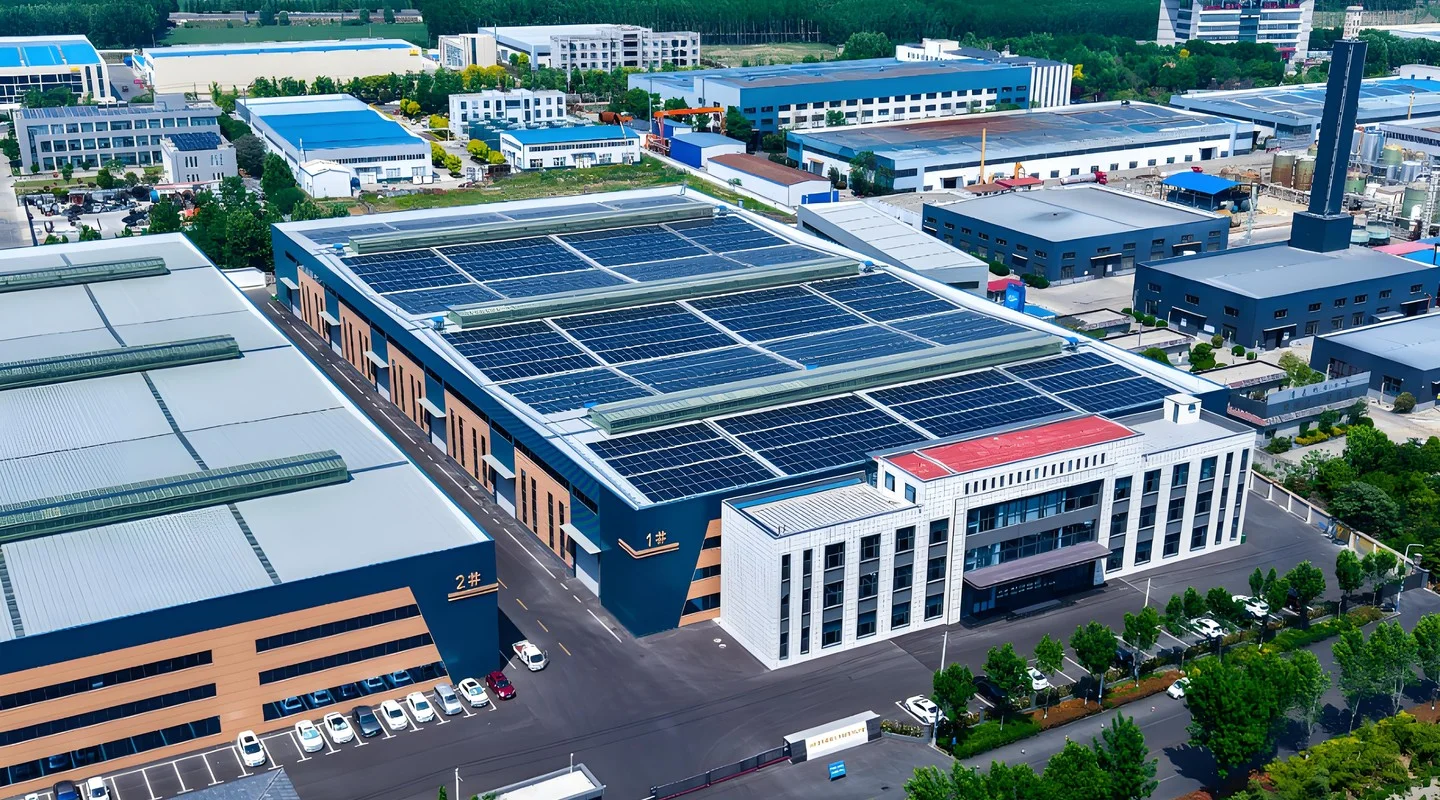

Shandong Mikton Heavy Industry Technology Co., Ltd. (Shandong Mikton), located in Shandong Province, is a modern heavy-industry technology enterprise integrating R&D, design, manufacturing, sales, and service. The company owns standardized production plants and modern office buildings, employing over 300 people. Equipped with advanced production lines, precision processing facilities, and a strict quality control system, Shandong Mikton specializes in the manufacturing and innovation of construction and mining equipment, with main products including drilling rigs, excavators, and other heavy machinery. Guided by technology and driven by quality, the company serves customers both domestically and internationally, dedicated to delivering efficient, durable, and intelligent heavy equipment and comprehensive solutions to the global market.
