Drilling depth: 200m
Drilling diameter: 140-254mm
Main motor power: 58kW

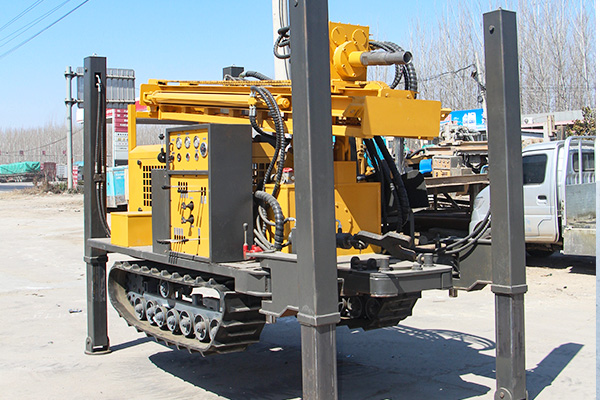

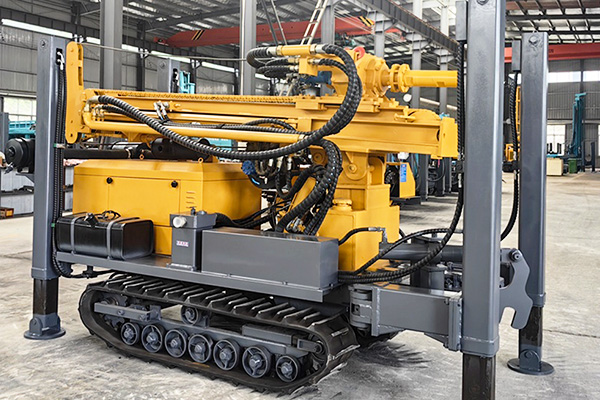

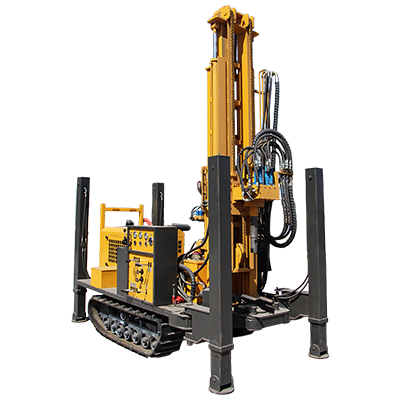

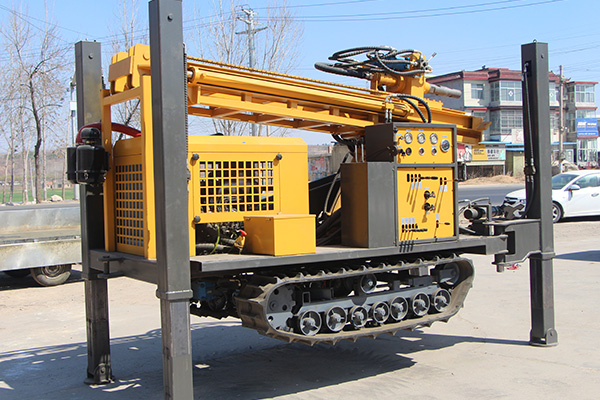

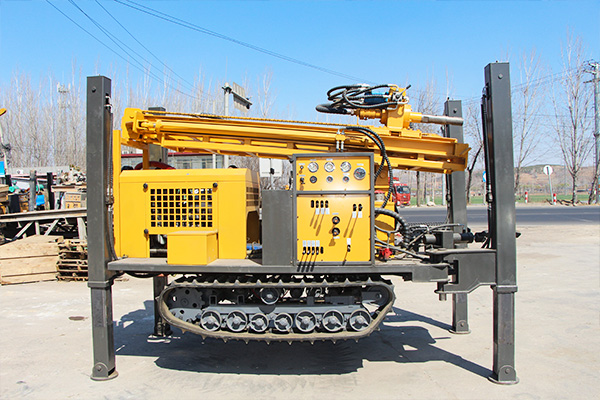

MKDQZ-200 Pneumatic Water Well Drilling Rig
Overview
The MKDQZ-200 pneumatic water well drilling rig is a lightweight, cost-effective drilling unit engineered for small to medium-sized water well projects up to 200 meters. Adopting pneumatic impact drilling technology, it delivers stable and efficient drilling performance across soil, sand and medium-hard rock formations, making it widely applicable for domestic water wells, agricultural irrigation boreholes, construction dewatering wells and ground source heat pump drilling.
Specifications
| Model | MKDQZ-200 |
Weight | 4.7T |
Drill hole diameter | 140-254mm |
Drill hole depth | 200m |
Single push length | 3.3m |
Travel speed | 2.5km/h |
Climbing ability | 30Max. |
Engine power | 58kW |
Working air pressure | 1.7-2.5MPA |
Air consumption | 17-31m3/min |
Rotation speed | 45-70rpm |
High leg stroke | 1.4m |
Drill pipe diameter | Φ76 Φ89mm |
Drill pipe length | 1.5m/ 2.0m /3.0m |
Rig lifting force | 13T |
Rapid rise speed | 30m/min |
Fast feeding speed | 60m/min |
Width of loading | 2.6m |
Hoisting force of winch | 1.5T |
Swing torque | 3400-4700N.m |
Dimensions | 3950*1750*2250mm |
The penetration efficiency | 10-35m/h |
The engine brand | Quanchai |
1. 200m Drilling Depth & Wide Bore Diameter for Mainstream Small-Medium Projects
It supports a maximum drilling depth of 200 meters and a bore diameter range of 140–254mm, fully meeting the needs of most small and medium-sized water well projects such as domestic water supply, farm irrigation and construction dewatering. It is compatible with common well casing specifications on the market with no extra customized parts required.2. 58kW Quanchai Diesel Engine with Fuel Efficiency & Low Maintenance
Fitted with a 58kW Quanchai diesel engine, it delivers stable and smooth power output with excellent fuel economy, supporting long continuous operation in off-grid field environments. The engine features mature technology and sufficient global spare parts supply, with low later maintenance costs and simple troubleshooting.3. Wide-Range Adjustable Pneumatic System for Diverse Geological Conditions
The working air pressure ranges from 1.7 to 2.5 MPa with an air consumption of 17–31 m³/min. Operators can flexibly adjust parameters according to strata features such as soil, sand, weathered rock and hard rock. It is also highly compatible with mainstream air compressor configurations on construction sites.
4. High-Speed Tripping System for Remarkably Higher Per-Shift Efficiency
It adopts a 3.3m single push length design to reduce drill pipe connection frequency. Paired with a 13T rig lifting force, it achieves 30m/min rapid rise speed and 60m/min fast feeding speed, greatly cutting auxiliary time for tripping and tool changing, and effectively increasing daily drilling footage and working efficiency.
5. Multi-Specification Drill Pipe Compatibility for Flexible Construction
It is compatible with Φ76mm and Φ89mm drill pipes, and supports three standard lengths: 1.5m, 2.0m and 3.0m. Users can freely match drill pipe combinations according to well depth design, site space and formation conditions, balancing construction efficiency and operation convenience.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDQZ-200 water well drilling rig, please contact us.
