Lifting height: 3–6 m
Maximum lifting capacity: 1500 kg
Minimum ground clearance: 250 mm

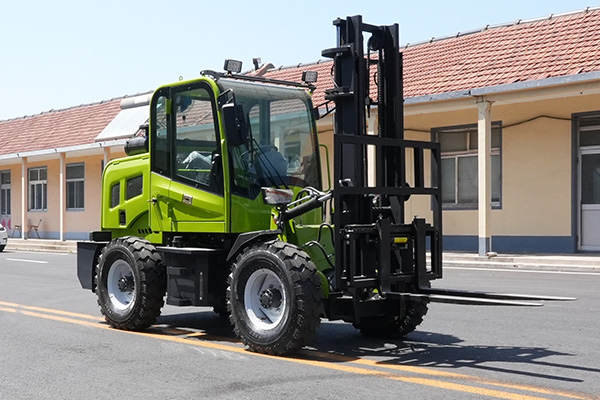

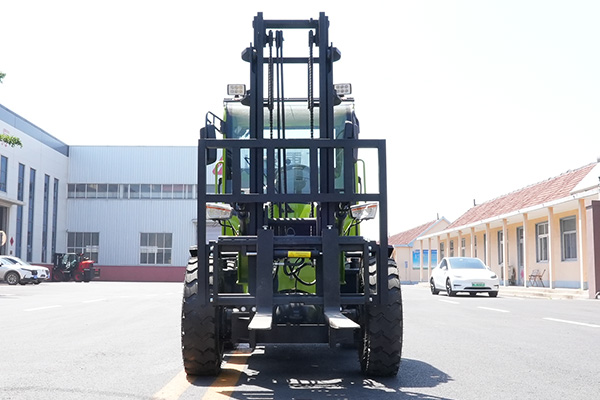

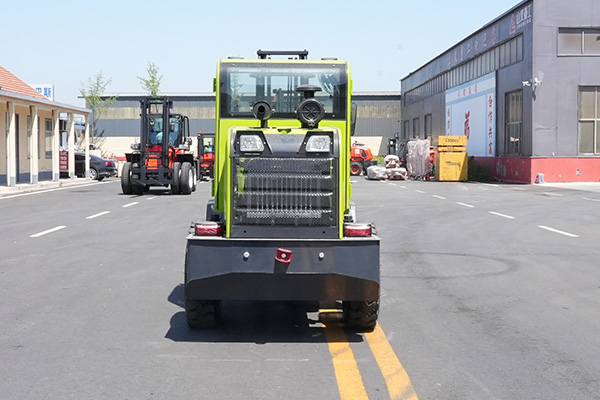

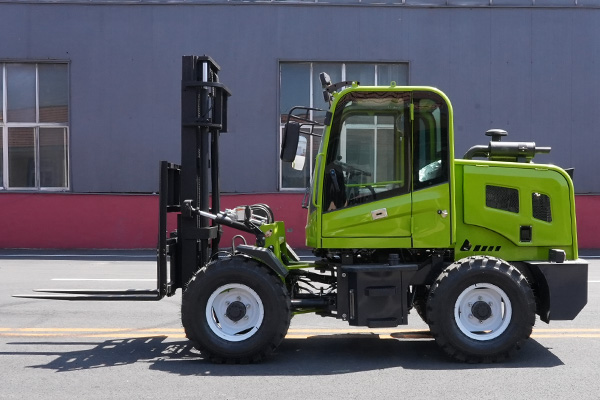

MKDCY-15 Rough Terrain Forklift
Overview
The MKDCY-15 is a 1.5-ton four-wheel drive rough terrain forklift powered by a 40kW Weifang diesel engine. Equipped with construction off-road tyres and 250mm high ground clearance, it handles ≤35° slopes and complex unpaved roads. With 30km/h travel speed and strong traction, it is ideal for cargo loading, unloading and transfer in construction sites, farms, mining areas and other field scenarios.
Specifications
| Model | MKDCY-15 |
Rated Lift Weight | 1500 kg |
Rated Lift Height | 3000mm |
Mast Tilt Angle | 10.0/6.0 |
Maximum Operating Speed | 30 km/h |
Engine Model | Weifang 490(40kW) |
Drive mode | Four-wheel drive |
Dimensions | 3200*1600*2200mm |
1. 1500kg Rated Lifting Capacity
With a rated lifting capacity of 1500kg and 500mm load center distance, it stably carries heavy cargo such as building materials, timber and gravel boxes, fully meeting heavy-load loading, unloading and transfer demands in construction sites, farms and mining areas.
2. Exceptional 35° Gradeability
It achieves a maximum climbing angle of ≤35° with strong power output. It easily conquers mountain slopes, steep construction site slopes and field slopes, adapts to large-slope working conditions and greatly expands the boundary of field operations.3. Rugged 825-16 Construction Tires
Fitted with heavy-duty 825-16 construction tires, the MKDCY-15 delivers maximum traction and durability on the most demanding surfaces. The deep tread pattern provides excellent grip in mud, loose gravel, and wet conditions, while the robust construction resists punctures and wear.
4. 15.0kN Strong Hook Pulling Force
With a maximum hook pulling force of 15.0kN, it performs heavy object dragging and broken-down vehicle towing in addition to conventional forklift loading/unloading. One machine serves multiple purposes, fully covering diversified field operation scenarios.
5. Tilting Mast & Optional Extended Forks
The mast supports 10° forward tilt and 6° backward tilt for precise cargo picking and stable holding. It supports optional 1220mm extended forks to handle long materials such as pipes and timber, with a wider operation application range.
6. Optimized 1800mm Wheelbase for Stability
The 1800mm wheelbase delivers an ideal balance of stability and maneuverability. This optimized configuration ensures safe, stable operation during lifting, traveling, and turning – even with full loads on uneven ground.
Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDCY-15 Rough Terrain Forklift , please contact us.
