Lifting Height: 3 m
Fork Length: 1220 mm
Max Lifting Capacity: 1500 kg

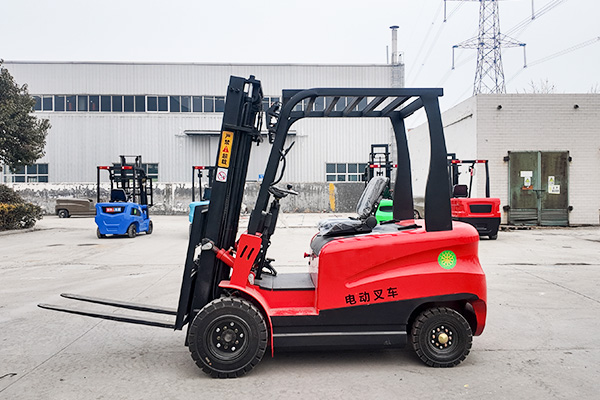

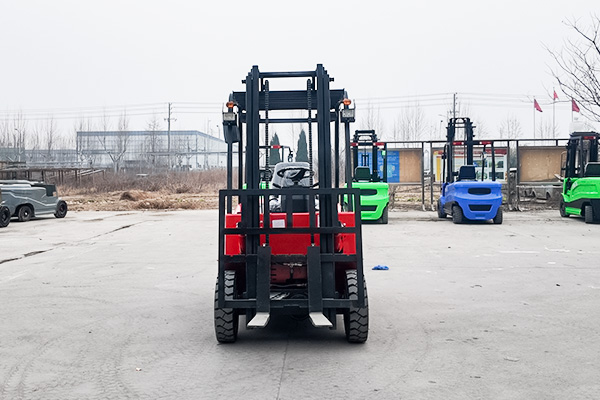

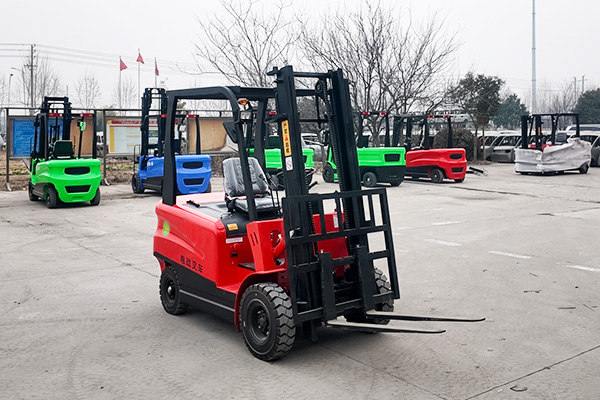

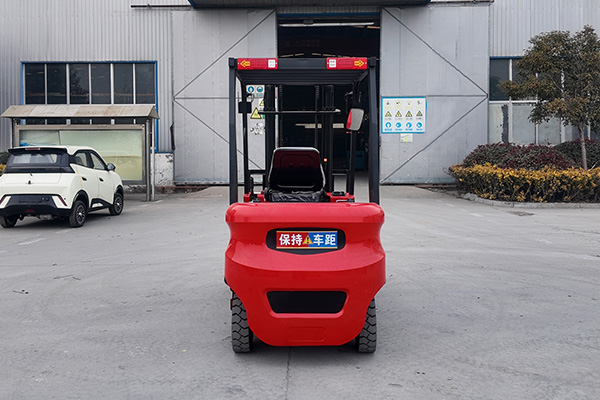

MKDDC-15 Electric Forklift
Overview
The MKDDC-15 is a 1.5-ton electric forklift. It is equipped with dual 3000W drive and lifting motors, a No.12 national standard C-shaped steel mast, a standard 3m lifting height and an optional 3-section 6m mast. With maintenance-free batteries and hydraulic oil brakes, it features a compact body and flexible handling. It is suitable for cargo loading, unloading and stacking in various warehouses and workshops, and is a cost-effective choice for indoor eco-friendly material handling.
Specifications
| Model | MKDDC-15 |
Lift Height | 3m |
Standard battery capacity | 5 pieces of Chaowei maintenance-free 70A |
Mast inclination angle (front/rear) | 6°-12° |
Gradeability/empty/full load | 15/13 |
Load Capacity | 1,500 kg |
Overall dimensions (length*width*height) | 2330*1200*2150mm |
Tire | Front wheel 650-10 Rear wheel 500-8 |
1. Dual 3000W High-Power Dual-Motor System
Both the drive motor and lifting motor adopt Chongqing Kecheng 3000W high-power configuration. The 60V operating voltage ensures strong and stable power output, with fast driving acceleration and quick lifting response. It delivers no power loss under heavy-load operations and greatly improves loading, unloading and transfer efficiency.
2. 3-Section Mast with Up to 6m Lifting Height
It comes with a standard 3m lifting height, and supports an optional 3-section mast to extend the maximum lifting height to 6m. It easily completes high-level shelf stacking and high-box truck loading/unloading, adapting to multi-level warehousing and high-platform loading/unloading scenarios.3. 12# National Standard C-Shaped Steel High-Strength Mast
The mast is made of No.12 national standard C-shaped steel, with high structural rigidity and excellent load-bearing stability. It resists deformation and cracking under long-term high-frequency heavy-load operations, effectively extending the mast service life and improving operation safety factor.
4. Narrow-Space Flexible Handling Advantage
The short wheelbase + narrow body design brings an extremely small turning radius, with light and precise steering. It completes steering, loading/unloading and stacking in narrow aisles about 2m wide. It is especially suitable for small and medium warehouses, street-front stores and workshops, maximizing the use of limited site space.
5. Hydraulic Oil Brake Safety System
Adopting hydraulic oil braking with sensitive response and uniform linear braking force, it delivers smooth, impact-free braking during driving and loading/unloading, and stops quickly in emergencies to comprehensively protect operators and cargo safety.
6.Optimized Wheelbase & Track Width
Front and rear wheelbase of 1.38m, with front track of 1010mm and rear track of 870mm, delivering excellent stability and balance during lifting and turning. The square tube steering axle enhances durability and steering precision.
Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDDC-15 Electric Forklift , please contact us.
