Drilling depth: MAX.180-200m
Drilling diameter: 60-460mm
Horsepower(HP): 22HP

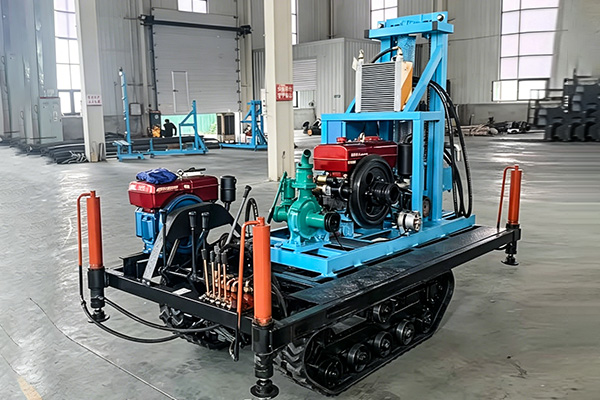

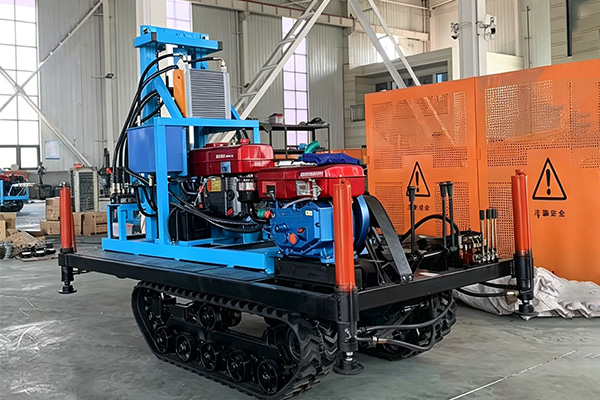

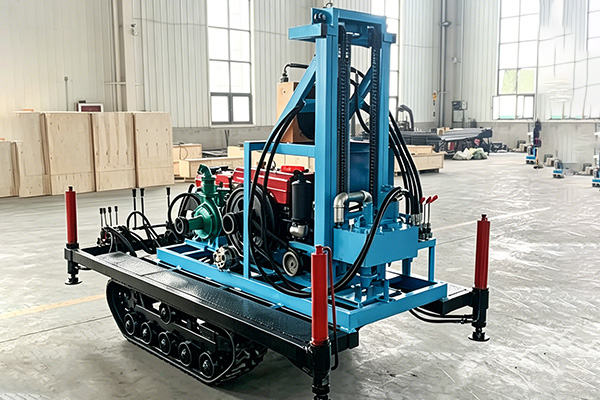

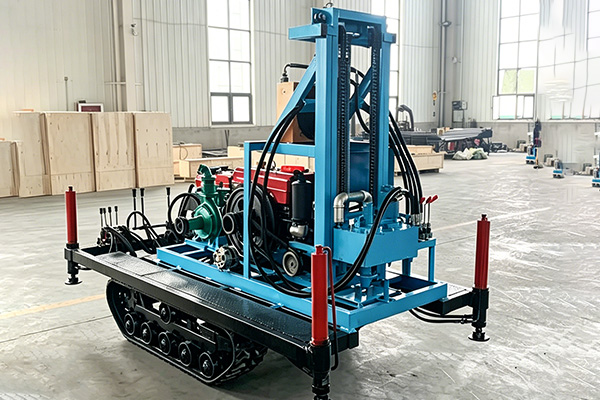

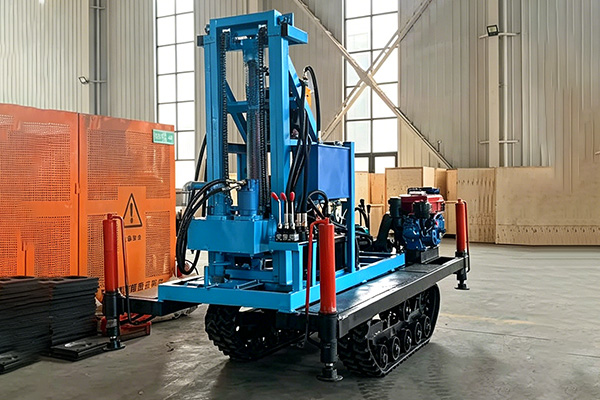

MKD-200L Water Well Drilling Rig
Overview
Specially designed for complex wilderness scenarios, the large-track single-cylinder diesel water well drilling rig combines the powerful output of single-cylinder diesel power with the all-terrain advantage of widened tracks, balancing performance and practicality. From muddy fields to rugged mountains, it delivers stable and reliable performance, breaking through site constraints and providing efficient and convenient water supply to every remote location.
Specifications
| Model | MKD-200L |
| Drilling Depth | MAX.180-200 m |
Drill Diameter | 60-460 mm |
Drill Pipe Specification | 50*1500 mm |
| Horsepower（HP） | 22HP |
Advance the Process all at once | 8-16 m |
Gear Pump Displacement | 200m³/h |
Hydraulic Oil Tank Capacity | 35L |
Rotary Type | |
| Maximum Torque of Power head | 1000N·m |
Maximum Speed of Power Head | 148-150r/min |
| Work Quality | 5000kg |
| Bare Machine Weight | 1250kg |
Engine Model | Changchai1115M |
Maximum Speed | 2200r/min |
Walking Speed | 25KM/H |
| Non-working State Dimensions | 3000mm*1400mm*2200mm |
| Operating State Dimensions | 3000mm*1400mm*3200mm |
1.Deep well drilling capability to reach high-quality water sources
Reach deep underground water reserves with ease – this rig is built to tackle the most demanding depth requirements, ensuring you always hit the target aquifer for reliable water supply.2.One machine, multiple uses—compatible with various drilling diameters
From narrow monitoring wells to large-diameter production wells, this single machine adapts to a broad spectrum of hole sizes. Eliminate the need for multiple rigs – one tool covers all your project needs.3.Powerful diesel engine for durable and reliable operation
Powered by a field-proven diesel engine known for its durability and fuel efficiency. This powerplant delivers consistent muscle for continuous drilling, with easy parts availability and low maintenance costs – keeping you working, not waiting.4.High-torque rotary head for easy penetration of hard strata
The hydraulic rotary power head generates massive twisting force to drill through gravel, dense clay, and light rock formations without stalling. No more frustrating jams – just smooth, powerful penetration that keeps your project on schedule.
5.Crawler walking, all terrain barrier free transition
The heavy-duty crawler undercarriage glides over muddy fields, sandy deserts, rocky hillsides, and rough construction sites. Move quickly between job locations without relying on trailers or trucks – true go-anywhere mobility.6.Single-operator design to reduce labor costs
Intuitive hydraulic controls and electric starting make this rig easy for a single skilled operator to handle. No need for a large crew – reduce your payroll expenses while maintaining high output. One man, one machine, maximum profit.For inquiries regarding the price, specifications, or configuration details of the MKD-200L water well drilling rig, please contact us.
